Flowmeters

Flowatch Flowmeter / Anemometer

$ 499.00 USD

Developed for use under various challenging field conditions. Its different impellers measure almost any fluid, liquid or gaseous medium. Fluid measurements can be taken in knots, km/h, mph, and m/s. The meter also takes temperature measurements in either °F or °C, including minimum and maximum temperature and current temperature. Also included is a wind speed impeller which allows you to take air velocity and wind chill measurements.

To take flow measurements from a bridge or other elevated location, use the optional flow sensor with 15 meter cable (sold separately). Kit includes the display, 2 m cable, telescoping rod, a 60mm water impeller, 25 mm air impeller and carrying case. Weatherproof.

Applications
- Measure rivers flows
- Irrigation canals
- Ocean flows
- Air conditioning conduits
- Sewage flows
- Ventilation shafts
- Hydrological studies
- Aerological studies
- Chimney flues

Flujómetro / Anemómetro Flowatch

• Specifications
• In the Box
• Required Items
• Optional Items

• Flow Speed Measurement

  Regular size windspeed impeller:
  - Diameter: Ø 20 mm, hole diameter Ø 33 mm
  - Minimum sensitivity: < 3km/h | < 1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-30° | +/-3%
  - Operating temperature: -50°C to +100°C

  Small size windspeed impeller (not incl.):
  - Diameter: Ø 12 mm, hole diameter Ø 18 mm
  - Minimum sensitivity: < 3km/h | < 1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-10° | +/-3%
  - Operating temperature: -50°C à +100°C

  Water impeller:
  - Diameter: Ø 60 mm
  - Minimum sensitivity: < 0.3km/h | < 0.1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-20° / +/-3%

  - Selectable units: Knots, mph, km/h, m/s, fps and cm/s
  - Speed resolution: 0.1 for all units (except in cm/s: 3cm/s)
  - Functions: Current, minimum, average, maximum temperature and windchill factor

  Temperature
  - Selectable units: °C, °F, °C felt and °F felt
  - Precision Thermometer: +/- 0.2°C
  - Resolution of the thermometer: +/- 0.1°C
  - Functions: Ambient temperature measurement, felt, minimum, average and maximum
• - Display (1)
  - Air impeller Ø 20 mm (1)
  - Water impeller Ø 60 mm (1)
  - Telescopic rod with 2 meters cable (1)
  - Standard Case (1)
• None

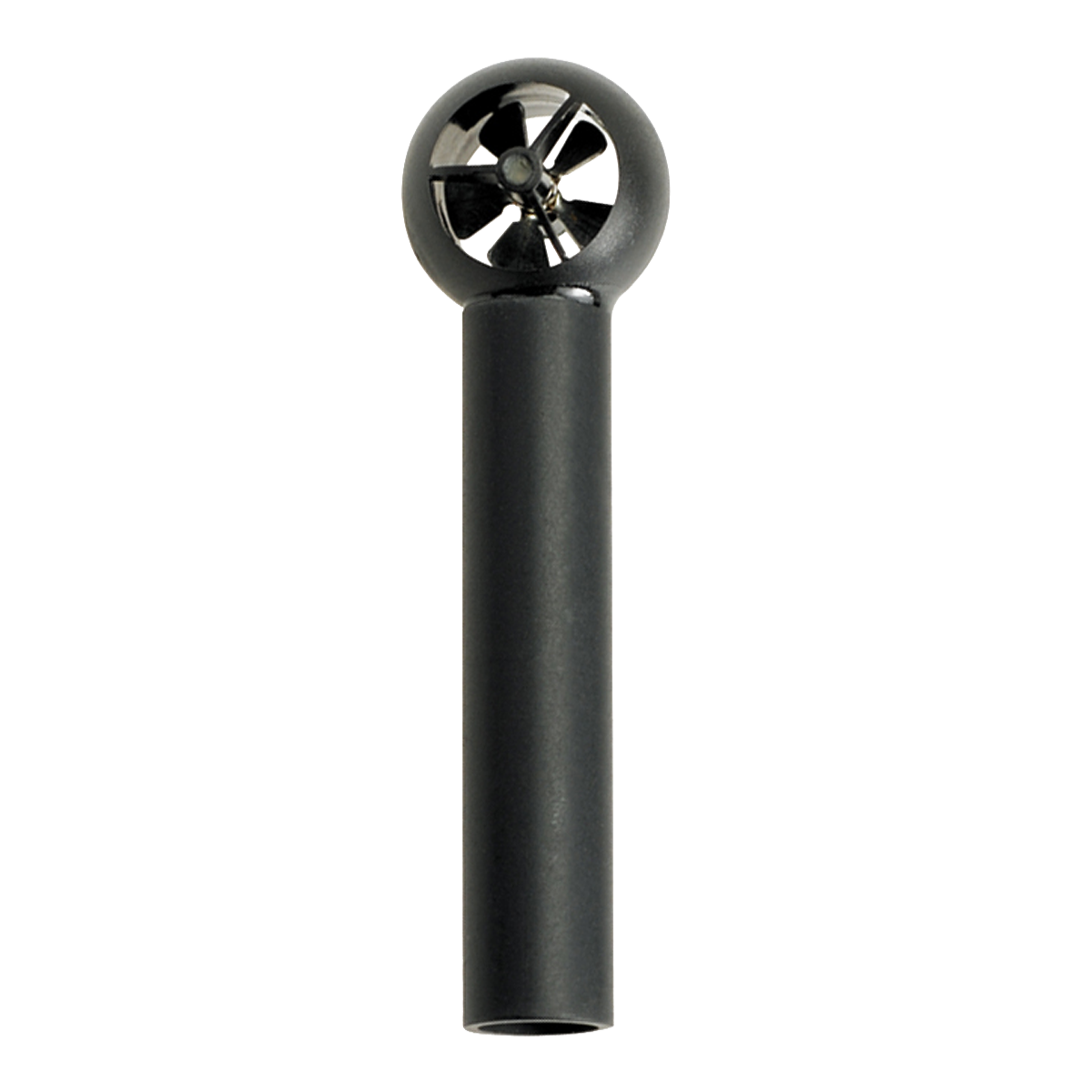

• - Air Impeller Ø 12 mm
  - Hanging Velocity Water Current Sensor w/ 15 m Cable

Flujómetro / Anemómetro Flowatch

View full product details »

---

Mechanical Flowmeters GO Environmental

$ 536.00 USD

Use in rivers, estuaries, canals, sewer outfalls, pipes, and harbor entrances to determine velocity and distance information or use with plankton nets to determine water volume associated with each tow. Both models incorporate precision molded rotors coupled directly to six digit counters which record each rotor revolution. Supplied with a standard calibration curve (number of counts/unit time vs. velocity) sealed inside transparent body. A single pin and lanyard system located ahead of the lateral center of mass allows the flowmeter to maintain correct dynamic alignment with the fluid flow in which it is immersed. The ref. 2030R6 with a rotor of 7 in, is ideal for slow water (6 to 100 cm/sec) and ref. 2030R with a rotor of 3 in, is ideal for faster water (10 to 790 cm/sec).

Available extension handle for use of mechanical flowmeters in streams and moving water. 8 feet extends up to measure the flow of current hard to reach. Sold separately.

Flujómetro Mecánico, flowmeter



• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• • Data readout: Six 10-digit counter wheel reading 000000 to 999999. Ten counts per rotor revolution, non-resetting. Read by noting difference in beginning and end readings. Counter advances through 000000. 999999 counts equals approximately 14.5 nautical miles.
  • Speed Range: With standard rotor, approx. 10cm/sec (1/5 knot) to 7.9 meters/sec (15 knots).
  With low-speed rotor, approx. 6cm/sec (3/25 knot) to 100cm/sec (2 knots).
  • Mounting: Universal bridle allowing single-point connection for towing or two-point connection within net mouth. 3-point connection ring is also available as an option. High-speed impeller rotates clockwise, low-speed impeller rotates counterclockwise.
  • Weight in Air:  225 grams (8 ounces).
  • Weight in Water: 113 grams (4 ounces).
  • Materials: Polycarbonate body, Celcon impeller, nickel-plated brass nose cone, Armalloyed stainless steel rotor and idler gear shafts. PVC low-speed impeller available as an option.
  • Dimensions: 21.3cm (8 3/8”) overall length. Standard rotor diameter is 6.98cm (2 3/4”). Low-speed rotor diameter is 16.5cm (6 1/2”).
  • Depth Rating: Unlimited (free flooding). Standard order of a 2030 series flowmeter includes universal bridle, standard or low-speed rotor. Standard order of a 2031 series flowmeter includes universal bridle, standard or low-speed rotor and pigtail (short length of cable and underwater connector for connection to readout cable. Readouts and other options to be ordered separately.
• • Flowmeter (1)
  • Manual
• • None
• • Extension Handle
• • User’s Manual (English)

View full product details »

---

Hanging Velocity Water Current Sensors

$ 295.00 USD

To take flow measurements from a bridge or other elevated location, use this optional flow sensor with 15 meter cable accesory with the Flowatch Flowmeter / Anemometer (sold separately).

• Specifications
• In the Box
• Required Items
• Optional Items

• - Water impeller incorpored
  - Cable 15 m
• - Hanging velocity water sensor (1)
  - Cable 15 m (1)
• - Flowatch Flowmeter / Anemometer
• None

Flujómetro / Anemómetro Flowatch

View full product details »

---

Flowatch Flowmeter / Anemometer with Hanging Sensor

$ 849.00 USD

Developed for use under various challenging field conditions. Its different impellers measure almost any fluid, liquid or gaseous medium. Fluid measurements can be taken in knots, km/h, mph, and m/s. The meter also takes temperature measurements in either °F or °C, including minimum and maximum temperature and current temperature. Also included is a wind speed impeller which allows you to take air velocity and wind chill measurements.

To take flow measurements from a bridge or other elevated location, use the optional flow sensor with 15 meter cable (included in this kit). Kit includes the display, 2 m cable, telescoping rod, a 60mm water impeller, 25 mm air impeller, hanging water sensor with 15m cable and carrying case. Weatherproof.

Applications
- Measure rivers flows
- Irrigation canals
- Ocean flows
- Air conditioning conduits
- Sewage flows
- Ventilation shafts
- Hydrological studies
- Aerological studies
- Chimney flues

Flujómetro / Anemómetro Flowatch

• Specifications
• In the Box
• Required Items
• Optional Items

• Flow Speed Measurement

  Regular size windspeed impeller:
  - Diameter: Ø 20 mm, hole diameter Ø 33 mm
  - Minimum sensitivity: < 3km/h | < 1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-30° | +/-3%
  - Operating temperature: -50°C to +100°C

  Small size windspeed impeller (not incl.):
  - Diameter: Ø 12 mm, hole diameter Ø 18 mm
  - Minimum sensitivity: < 3km/h | < 1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-10° | +/-3%
  - Operating temperature: -50°C à +100°C

  Water impeller:
  - Diameter: Ø 60 mm
  - Minimum sensitivity: < 0.3km/h | < 0.1m/s
  - Precision: +/-2%
  - "off-axis" error: +/-20° / +/-3%

  - Selectable units: Knots, mph, km/h, m/s, fps and cm/s
  - Speed resolution: 0.1 for all units (except in cm/s: 3cm/s)
  - Functions: Current, minimum, average, maximum temperature and windchill factor

  Temperature
  - Selectable units: °C, °F, °C felt and °F felt
  - Precision Thermometer: +/- 0.2°C
  - Resolution of the thermometer: +/- 0.1°C
  - Functions: Ambient temperature measurement, felt, minimum, average and maximum
• - Display (1)
  - Air impeller Ø 20 mm (1)
  - Water impeller Ø 60 mm (1)
  - Hanging water sensor with 15m cable (connects directly to display) (1)
  - Telescopic rod with 2 meters cable (1)
  - Aluminum Case (1)
• None
• - Air Impeller Ø 12 mm
  - Hanging Velocity Water Current Sensor w/ 15 m Cable

Flujómetro / Anemómetro Flowatch

View full product details »

---

Direct Readout Adaptor GO Environmental for Electronic Flowmeters

$ 965.00 USD

Transfer direct to your computer information from the flowmeter. Includes software, adaptor and cable of...

View full product details »

---

Hydro-Bios Mechanical Flowmeter

$ 700.00 USD

Mechanical counter to quantify water filtered by plankton nets. The main application of the Mechanical...

View full product details »

---
