This professional cleaning kit cleans messy fingerprints, dirt and dust, stains etc. The non-aerosol cleaner is safe for using on optical lens of microscope, DC DV lens of professional cameras, iPhone, iPad, laptop screens, LCD screens, plasma TV, VCD, DVD, CD etc. The cleaning kit includes a bottle of liquid, a piece of cleaning cloth and a brush for cleaning corners and sidings of the screen.
California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals
|Brush Length:||5-1/2" (13.5cm)|
|Liquid Cleaning:||100 ml|
|Cleaning Cloth:||5-7/8" x 6-3/4" (15 x 17cm)|
|Material:||rubber, plastic, nylon|
This model is especially popular in the quality control, dental, repair and engraving industries thanks to its ease of use and reliability. With its wide zoom range and single arm mount, this model will become an indispensable instrument in any workshop or laboratory.
Stereo optics provide crisp, clear images with excellent depth of focus and long working distance. With capable zoom lenses, moving through the magnification range is as easy as turning a knob. Wide-field eyepieces provide a wide magnification range, with high-view optics to accommodate spectacles or goggles.
Dual eyepiece diopters can be adjusted to maintain constant focus, greatly improving productivity. Rotating interpupillary adjusters simplify the eyepiece alignment process for each user.
ideal para trabajos prácticos. El diseño de un solo brazo proporciona un soporte resistente en una forma simple. La cabeza se puede girar 360 °, el bloque de enfoque puede girar en cualquier dirección y el brazo lateral puede girar y girar para colocar la cabeza en prácticamente cualquier ángulo. La pesada base de acero asegura la estabilidad del microscopio, incluso cuando está cargado de accesorios.
|Ref||Standard (without Light)||80 LED Ring Light||Fiber Optic Ring of Light||Gooseneck Fiber Optic Light|
|Color||White and Black|
|Head Type||Binocular, 45 ° tilt, 360 ° rotatable||360 degree rotatable binocular with 45 degree tilt||Binocular, inclinación de 45 °, giratorio de 360 ||360 degree rotatable binocular with 45 degree tilt||Binocular, 45 ° tilt, 360 ° rotatable|
|Optical System||Stereoscopic greenough||30mm Super Wide Field High Point of View WF10X / 20||Stereoscopic greenough||30mm Super Wide Field High Point of View WF10X / 20||Stereoscopic greenough|
|Interpupillary Adjustment||Gemel without compensation, 54-76mm||N/A||Gemel without compensation, 54-76mm||N/A||Gemel without compensation, 54-76mm|
|Ocular Port Diameter||30 mm||N/A||30 mm||N/A||30 mm|
|Diopter Adjustment||Both eyepieces, ± 5dp||+/- 5dp||Both eyepieces, ± 5dp||+/- 5dp||Both eyepieces, ± 5dp|
|Eyepieces||10X||30mm Super Wide WF10X / 20||10X||30mm Super Wide WF10X / 20||10X|
|Objective Lenses||Zoom 0,7X-4,5X||N/A||Zoom 0,7X-4,5X||N/A||Zoom 0,7X-4,5X|
|Objective Numerical Opening||
|Native Field of View||4,4 mm a 28,6 mm||65 mm||4,4 mm a 28,6 mm||65 mm||4,4 mm a 28,6 mm|
|Native Working Distance||100 mm||200 mm||100 mm||200 mm||100 mm|
|Auxiliary Lens (Barlow)||0.5X, 165mm working distance 2X, 30mm working distance||0.5X y 2.0X||0.5X, 165mm working distance 2X, 30mm working distance||0.5X y 2.0X||0.5X, 165mm working distance 2X, 30mm working distance|
|Support Type||Single arm boom stand, cast steel base|
|Bracket Dimensions||16" arm (total length 20 ''), 23cm high pillar, 9 '' x 9 '' x 4 '' solid cast steel base||Focus Block Focus Range||50 mm||N/A||50 mm||N/A||50 mm|
This is a new high-quality 40X Plan achromatic microscope objective lens. It is an international DIN/JIS lens. It fits common-sized biological/compound microscopes (DIN/JIS standard). Enhance your microscope with greater power and clarity at a fraction of the cost.
† California Proposition 65 WARNING: Cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov/chemicals.
|Objective Iris||No iris|
|Objective Mounting Size||20 mm|
|Objective Type||Compound, brightfield, darkfield|
|Special Feature||Objective-No Iris|

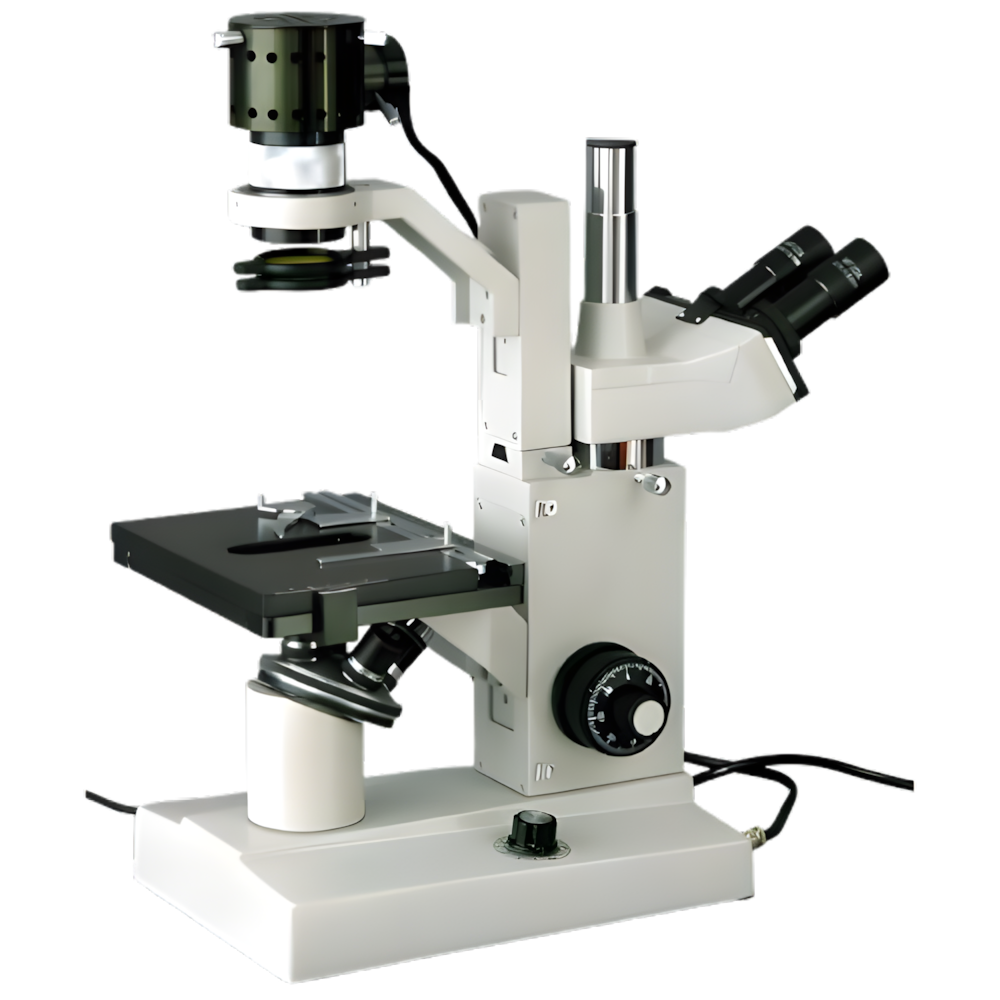

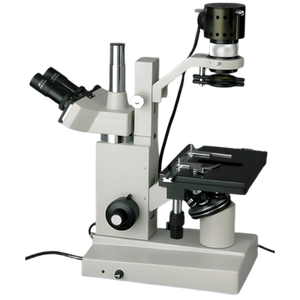

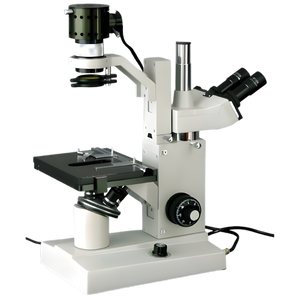

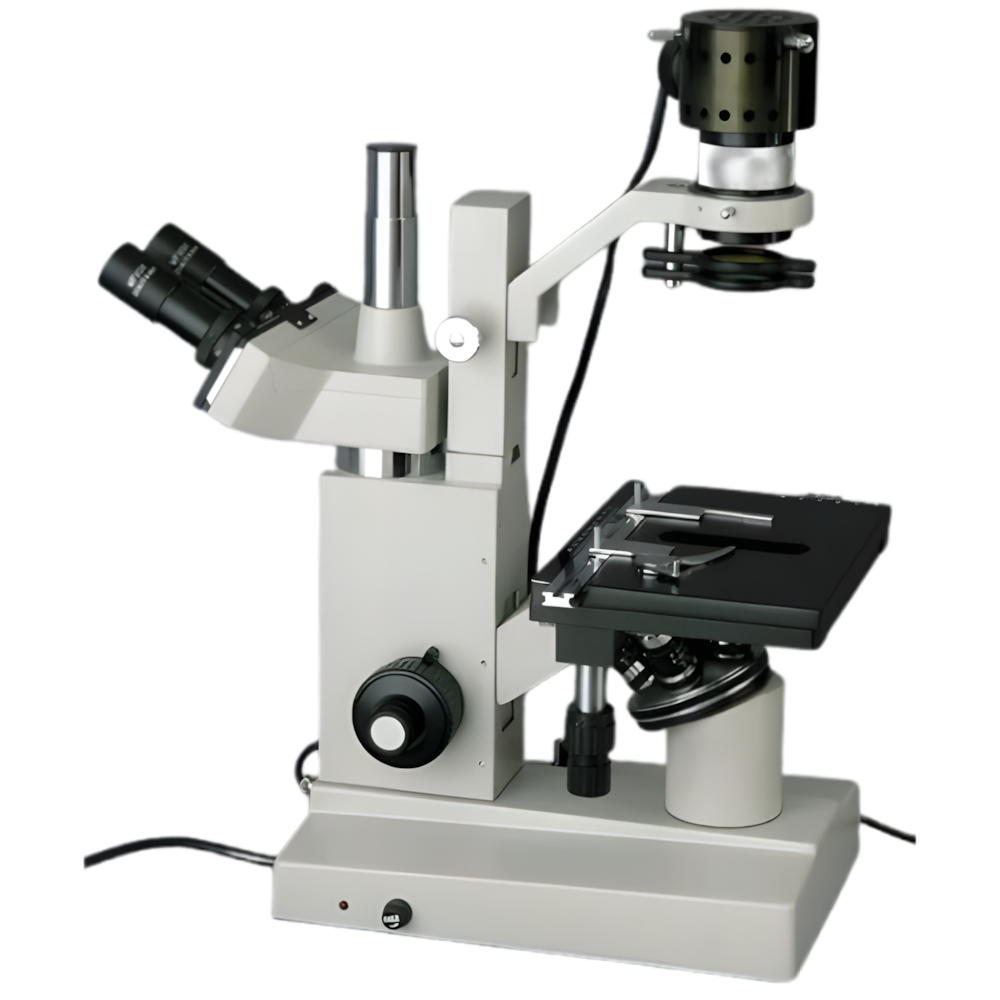

The IN300T provides high-resolution optics and an inverted illumination system in a stable, ergonomic design for observing cell cultures and other biological and chemical specimens in brightfield and phase-contrast. The inverted form accommodates larger specimen containers, with multiple specimen templates and mechanical stage controls to improve workflow. High-resolution optics and phase-contrast capability maximize contrast and clarity to ensure high quality images.
The viewing head has a 45° incline and Siedentopf interpupillary adjustment for flexibility and comfort. Super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. For users with astigmatism or asymmetrical vision, the right ocular can be adjusted to fine-tune focus. The trinocular format provides a dedicated photo-port for mounting a microscopy camera for capturing photos or videos. The 23mm photo port is height-adjustable to match focus with the eyepieces.
The quadruple objective turret provides instant access to 4 magnification levels. This allows you to efficiently move through magnifications from 40X to 400X. Additional 25X eyepieces expand the maximum magnification to 1000X with 7 unique levels. These high-quality lenses are achromatically corrected for superior optical corrections and transmittance, with planatic flat-field correction to provide edge-to-edge sharpness.
The large stage can accommodate slides, multi-well plates, dishes, and short flasks. Two plates are supplied for the stage’s aperture, including glass and key-holed metal for varying light control. A large mechanical caliper can hold and position any of the sample templates for precision placement.

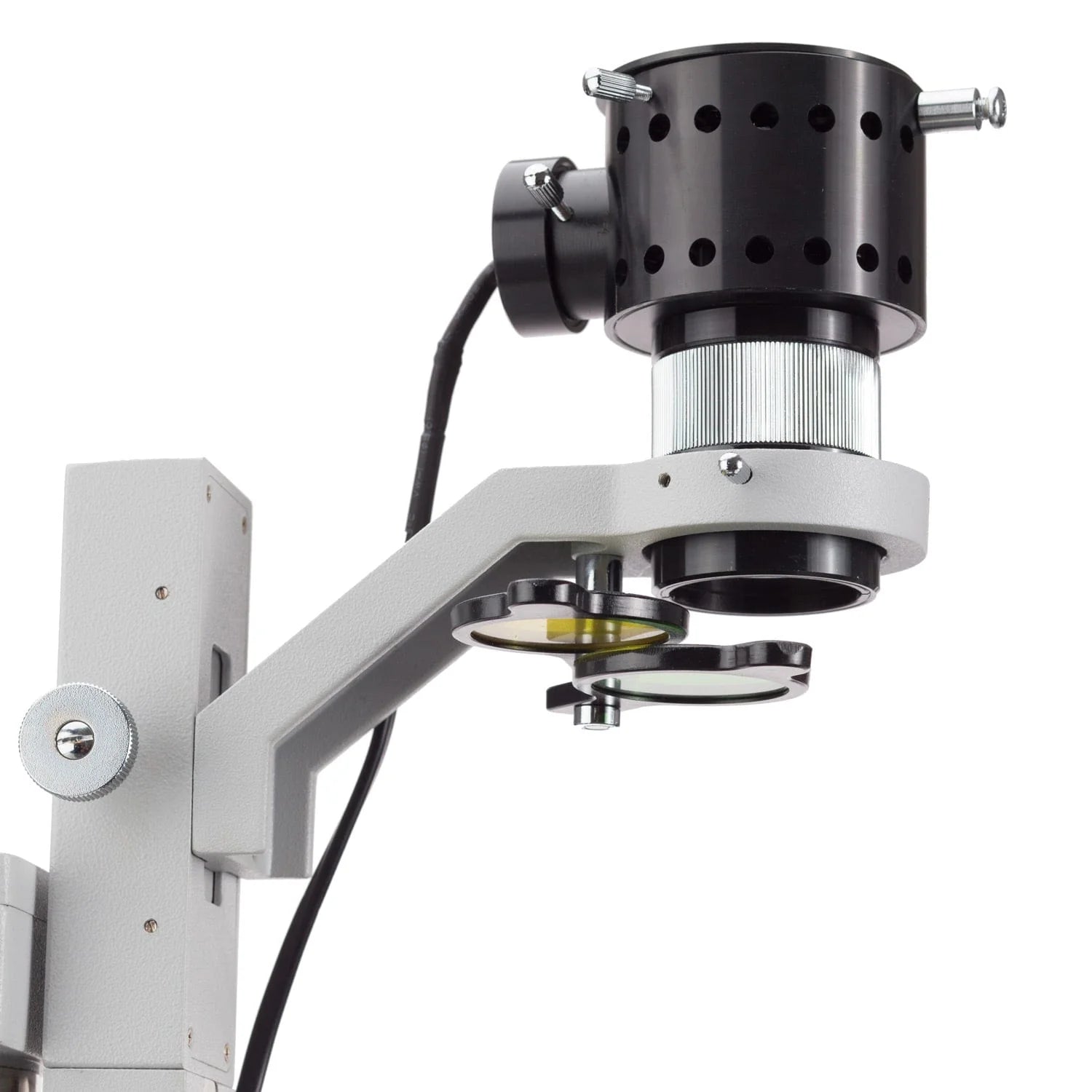

The transmitted illumination system uses a fixed-height, 30W incandescent light-source with integrated condenser, and slots for filters and a phase-annulus board. The annulus board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction.
The 10X and 20X objective lenses are equipped with phase rings for phase-contrast observation. By sliding the provided phase-annulus board into the overhead lamp, the transmitted lighting is quickly changed to work with the objective lenses to enhance contrast in hard-to-see samples such as live cells which cannot be stained. By manipulating variances in phase caused by changing refractive indices, once imperceptible details can present as transitions from dark to light.

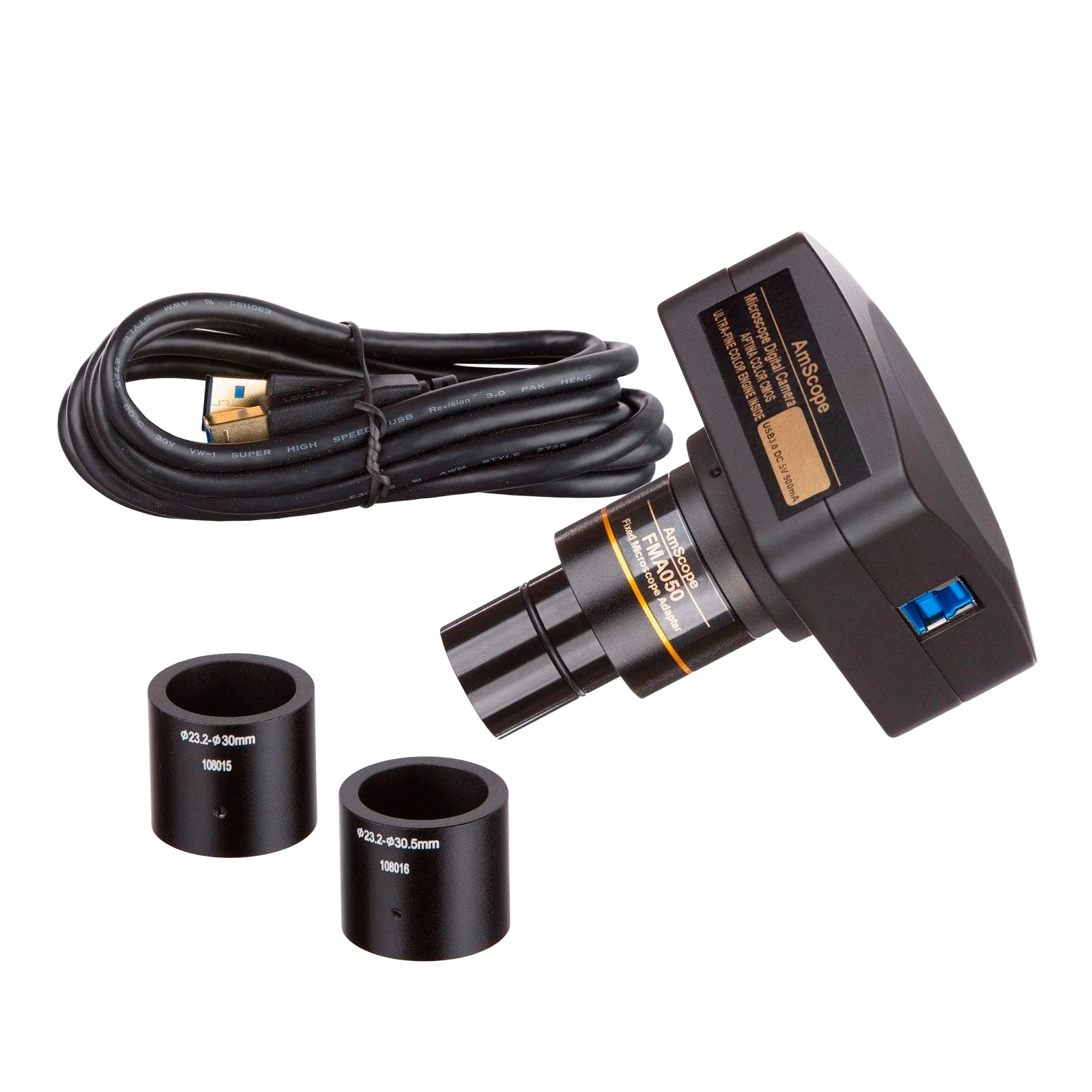

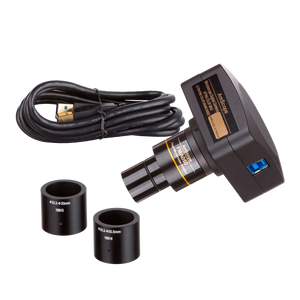

Monitor and capture photos and videos with the included 3.0MP USB3.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. The USB 3.0 connection provides greater bandwidth for faster frame-rates. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
|Applications||Clinic, Laboratory, Veterinary|
|Condenser Type||Brightfield, Phase Contrast|
|Education Level||College, Teaching/Training|
|Eyepiece Mounting Size||30mm|
|Field of View Class||Extreme Widefield|
|Illumination Bulb Count||1|
|Objective Lens Power||4X, 10X, 20X, 40X|
|Objective Mounting Size||20mm|
|Product Type Category||Compound|
This is a 100X achromatic oil-immersion objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals
|Mechanical Tube Length||160 mm|
|Mounting Thread||RMS 20,32 mm|
|Parfocal Distance||45 mm|
|Cover-glass Thickness||0,17 mm|
|Objective Iris||Without Iris|
|Objective Mounting Size||20 mm|
|Objective Type||Compound, Brightfield|
|Proposition 65 WARNING|
† California Proposition 65 WARNING: Cancer and reproductive harm for more information go to www.P65Warnings.ca.gov/chemicals

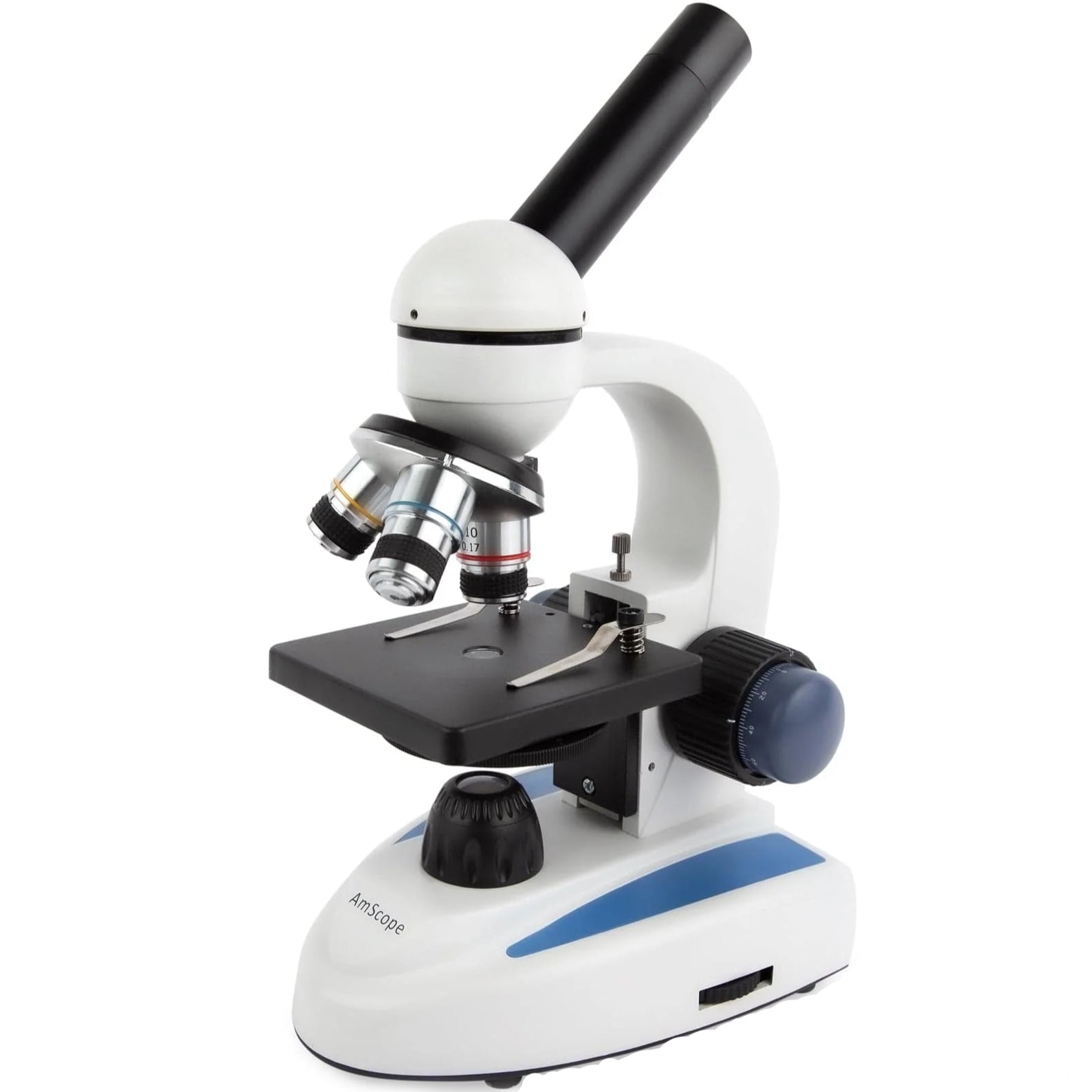

|Compatibility||PC & Mac|
|Illumination style||Transmitted (Bottom)|
|Microscope Camera Pixel||0.3MP|
|Microscope Condenser Design||Single Lens w/ disc|
|Microscope Condenser Optics||NA 0.65|
|Microscope Condenser Type||Brightfield|
|Microscope Eyepiece Power||10X, 25X|
|Microscope Eyepiece Size||23mm|
|Microscope Field View||Widefield|
|Microscope Head Style||Monocular|
|Microscope Light Power||1W|
|Microscope Light Shape||Built-in|
|Microscope Light Type||LED|
|Microscope Magnifying Power||40X to 1000X|
|Microscope Number of Bulbs||1|
|Microscope Objective Power||4X, 10X, 40X|
|Microscope Objective Size||20mm|
|Microscope Power Supply||110V, 220V|
|Microscope Stage||Single-layer Stage with Clips|
from $ 90.00 USD
$ 90.00 USD
This is a package of 50pc pre-cleaned blank microscope glass slides with ground edges plus...
